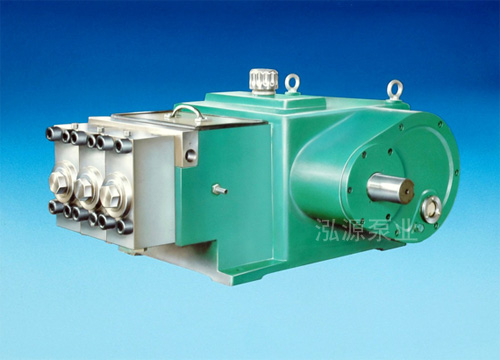

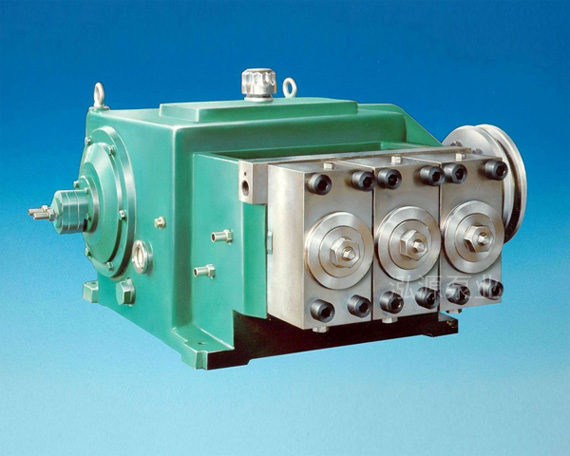

WHY80-100高壓泵系列
WHY80-100高壓泵系列
| 輸入轉速I(mǎi)nput shaft speed (min-1) | 1480r/m | 柱塞行程Plunger stroke(mm) | 66 | ||||
| 齒輪減速比 Gear reduction ratio i | 2.761 | 泵速 Pump speed（min-1） | 525 | ||||
| 電機功率Motor power (KW) | 90 | 110 | 132 | 160 | 200 | ||
| 額定流量Rated Flow | 額定壓力Rated pressure(Mpa) | ||||||
| M3/h | L/min | ||||||
| 1.8 | 35 | 128 | 150 | 180 | |||
| 2.4 | 42 | 107 | 130 | 157 | |||
| 3 | 46 | 98 | 120 | 143 | 170 | ||
| 3.6 | 50 | 90 | 110 | 132 | 160 | ||
| 4.2 | 59 | 76 | 93 | 111 | 136 | 170 | |
| 4.8 | 70 | 64 | 78 | 94 | 114 | 150 | |
| 5.4 | 80 | 56 | 69 | 82 | 100 | 125 | |
| 6 | 90 | 50 | 61 | 73 | 88 | 111 | |
| 7.8 | 100 | 45 | 55 | 66 | 80 | 100 | |
| 10.2 | 130 | 35 | 42 | 50 | 61 | 77 | |
| 11.4 | 165 | 27 | 33 | 40 | 48 | 60 | |
| 14.4 | 200 | 23 | 27 | 33 | 40 | 50 | |
| 17.4 | 250 | 18 | 22 | 26 | 32 | 40 | |
| 21 | 290 | 16 | 19 | 22 | 275 | 35 | |
| 24.9 | 345 | 13 | 16 | 19 | 23 | 29 | |
| 400 | 11 | 14 | 16 | 19 | 25 | ||
